IIoT/IoT/Cellular Modem Devices:
CompuPort IIoT-enabled, plug-and-play, open, interoperable architecture and platform, in Homes, Buildings, Data Centers, Infrastructure and Industries. Innovation at Every Level from Connected Products to Edge Control, and Apps, Analytics and Services.
Bullet LTE-NA2
Part# MHS117404
IPn4Gii-NA2
Part# MHS116954
Bullet Plus-NA2
MHS117501
Bullet CAT12
Bullet CAT9
MHK117720
Bullet5G
MHK120100
Bullet PlusAC

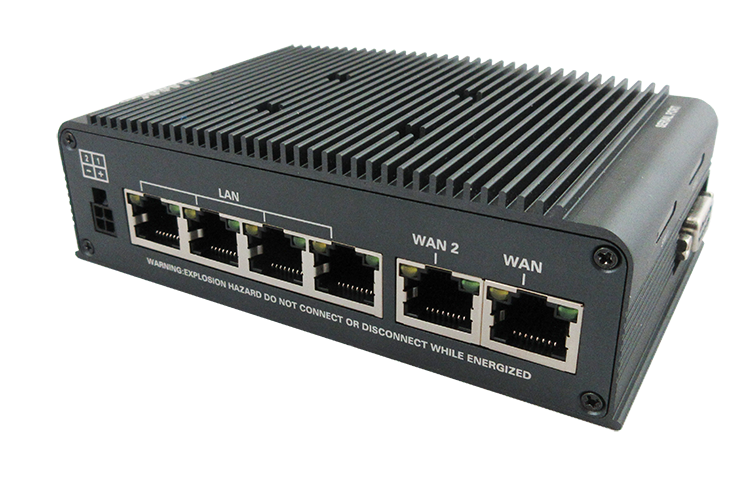

BulletPlusAX-5G
5G Cellular Ethernet Serial Gateway Dual Band AX WIFI

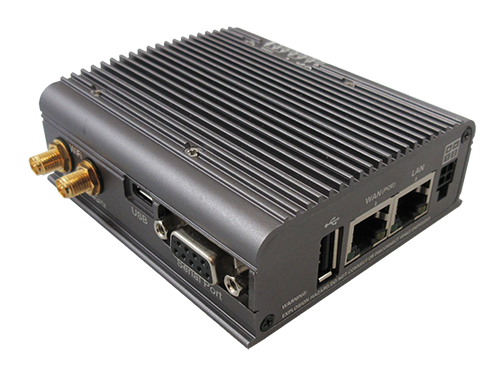

BulletPlus5G
MHK120300
BulletPlus5G – 5G Cellular Ethernet/Serial Gateway w/ Dual Band WIFI
Teltonika
RUT2410
Teltonika
RUT955
Microhard
Cube-CAT4-NA2
PepLink
MAX-BR1-MINI-5G-T-M-PRM
PepLink
MAX-BR1-MINI-LTE-T-M-PRM
IoT/PICO Modems:
PX2-EMC 2.4Ghz MHK185230
pMDDL900
P900-EMC 900Mhz MHS185060
Cellular Antennas :
CompuPort is proud to offer a range of IoT and SCADA antennas, expertly designed and developed by our Canadian engineers to meet the needs of North America and the global market. Our solutions support applications such as remote monitoring, smart meters, transportation, and marine industries. We provide diverse antennas, including stubby, puck, dome, and YAGI models, with directional and MIMO omnidirectional options for reliable performance in any environment.
What is 5G?
5G is the fifth generation of wireless cellular technology. It’s in the process of replacing 4G as the predominant network for cellular companies and phone manufacturers. It can hit speeds upwards of 1 Gbps (1,000 Mpbs) and uses technology like beamforming and massive MIMO to deliver wireless signals with less interference and more efficiency.
Transportation 5In1 Antenna : BXQ
Part: CPC-GPS/LTE2/WIFI2-BQX
5-in-1 Puck Antenna (2xLTE, GPS, 2xWIFI)
The CompuPort antenna is a rugged, 5-in-1 puck antenna for use with Microhard, Digi, Teltonika, Cradlepoint, Sierra Airlink, and any Wireless cellular modems. This multi-function antenna features dual LTE antennas for Main and Diversity, a high gain Active GPS antenna, as well as dual integrated WIFI antennas. This all-in-one antenna is ideal for applications where the antenna will be permanently mounted.
Features
- LTE: 698-960 MHz/1710-3800 MHz
- LTE: 3 dBi Gain
- WIFI: 2300-2500/4900-6000 MHz
- WIFI: 3 dBi Gain
- GPS: 1575.42+/-5 MHz
- GPS: 28+/-2dB (Active)
- Omnidirectional
- 50 Ohm Output Impedance
- Wide Operating Temp (-40°C to +85°C)
Transportation 3In1 Antenna : BXQ
Part: CPC-GPS/LTE/WIFI-BQX
3-in-1 Puck Antenna (LTE, GPS, WIFI)
The CompuPort antenna is a rugged, 5-in-1 puck antenna for use with Microhard, Digi, Teltonika, Cradlepoint, Sierra Airlink, and any Wireless cellular modems. This multi-function antenna features dual LTE antennas for Main and Diversity, a high gain Active GPS antenna, and dual integrated WIFI antennas. This all-in-one antenna is ideal for applications where the antenna will be permanently mounted.
Features
- LTE: 698-960 MHz/1710-3800 MHz
- LTE: 3 dBi Gain
- WIFI: 2300-2500/4900-6000 MHz
- WIFI: 3 dBi Gain
- GPS: 1575.42+/-5 MHz
- GPS: 28+/-2dB (Active)
- Omnidirectional
- 50 Ohm Output Impedance
- Wide Operating Temp (-40°C to +85°C
Transportation 3In1 Antenna : DQX
Part: CPC-GPS/LTE/WIFI-DQX
3-in-1 Puck Antenna (5G/LTE, GPS(GLONASS), WIFI)
The CompuPort antenna is a rugged, 3-in-1 puck antenna for use with Microhard, Digi, Teltonika, Cradlepoint, Sierra Airlink, and any Wireless cellular modems. This multi-function antenna features dual LTE antennas for Main and Diversity, a high gain Active GPS(GLONASS) antenna, and integrated WIFI antennas. This all-in-one antenna is ideal for applications where the antenna will be permanently mounted.
Features
- LTE: 617-960 MHz/1710-6000 MHz
- LTE: 3 dBi Gain
- WIFI: 2300-2500/4900-6000 MHz
- WIFI: 3 dBi Gain
- GPS: 1575.42+/-5 MHz
- GPS/GLONASS: 28+/-2dB (Active)
- Omnidirectional
- 50 Ohm Output Impedance
- Wide Operating Temp (-40°C to +85°C)
Transportation 5In1 Antenna : DXQ
Part: CPC-GPS/LTE2/WIFI2-DQX
5-in-1 DQX Antenna (2x5G/LTE, GPS(GLONASS), 2xWIFI)
The CompuPort antenna is a rugged, 5-in-1 puck antenna for use with Microhard, Digi, Teltonika, Cradlepoint, Sierra Airlink, and any Wireless cellular modems. This multi-function antenna features dual LTE antennas for Main and Diversity, a high gain Active GPS(GLONASS) antenna, and dual integrated WIFI antennas. This all-in-one antenna is ideal for applications where the antenna will be permanently mounted.
Features
- LTE: 617-960 MHz/1710-6000 MHz
- LTE: 3 dBi Gain
- WIFI: 2300-2500/4900-6000 MHz
- WIFI: 3 dBi Gain
- GPS: 1575.42+/-5 MHz
- GPS: 28+/-2dB (Active)
- Omnidirectional
- 50 Ohm Output Impedance
- Wide Operating Temp (-40°C to +85°C)

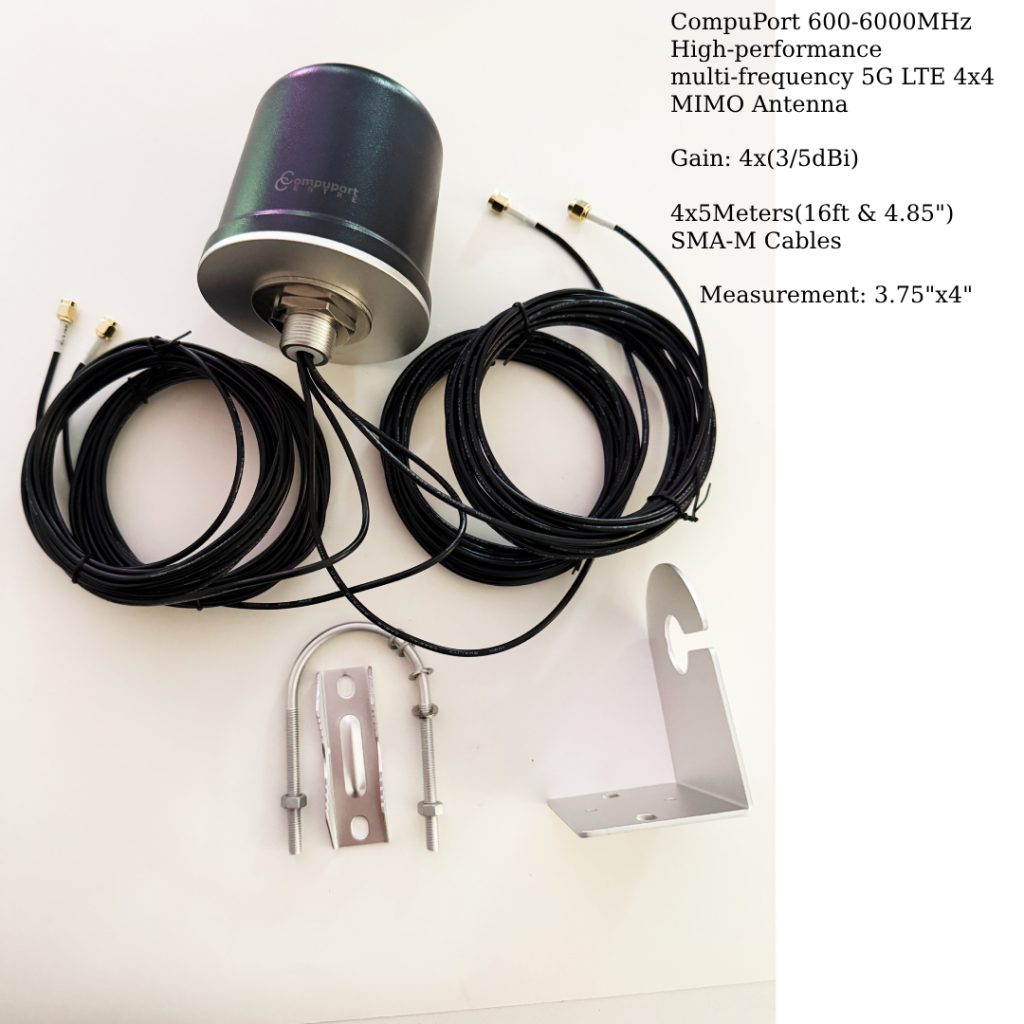

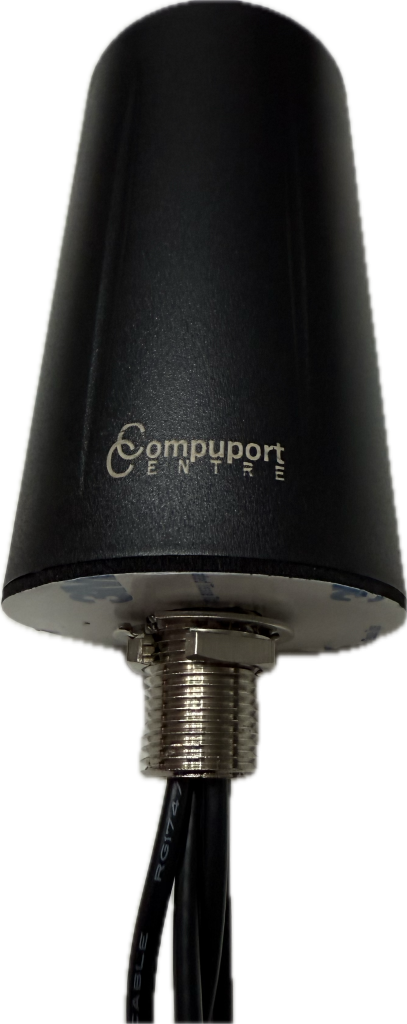

MIMO OMNI 4x4 Dome Antenna:
Part: CPC-5GLTEX4-GQXS-5M
600-6000MHz High performance multi-frequency 5G LTE 4 in 1 MIMO Panel Antenna
Features
This 5G Screw Mount 4-in-1 Combo Antenna Box is an ultra-wide-band 5G/4G antenna box with broad
coverage from 600MHz to 6000MHz.It is also backward compatible to support 3G/2G networks, Cat M,
and NB-IoT. It is an omnidirectional, heavy-duty, fully IP67 waterproof external M2M antenna for use in
telematics, transportation, and remote monitoring applications. Screw Mount design let this 4-in-1
Combo Antenna to work with various GND plane sizes or in free space for ease of integration with
connection via five cables of customizable length between 300m to 5000mm and terminated with
SMA connectors. This screw-mount omnidirectional IoT antenna is easily installed with maximum
Durability with its IP67 enclosure.
Choice of 4×3 ft or 16.5ft. SMA Male cables.
MIMO OMNI 5x5 CQX Antenna:
Part: CPC-GPS(GLONASS)/5GLTE4-CQX-5M
CompuPort 5-Port (5in1)Screw-Mount 5G/4G/3G/Wi-Fi/GPS/GLONASS
MIMO Antenna.
Features
The CompuPort antenna is a five-port antenna with four elements, designed to cover the 600
960 MHz and 1710-6000 MHz cellular bands, and one GPS element.
The antenna can be mounted on the roof of a vehicle or a fixed structure.
The antenna meets or exceeds various environmental ruggedization specifications for
transportation applications.
This antenna is an omnidirectional, heavy-duty, fully IP67 waterproof external M2M antenna
for use in telematics, transportation, and remote monitoring applications.
The antenna has its ground plane and can radiate in any mounting environment, like metal or
plastic, without affecting performance.
The cables are low-loss loss allowing for lengths of up to 10 meters, critical for buses, trains,
and other commercial transport applications. Customized cables and connector versions
available.
✅Options: 5×1 Meter or 5×5 meters SMA cables

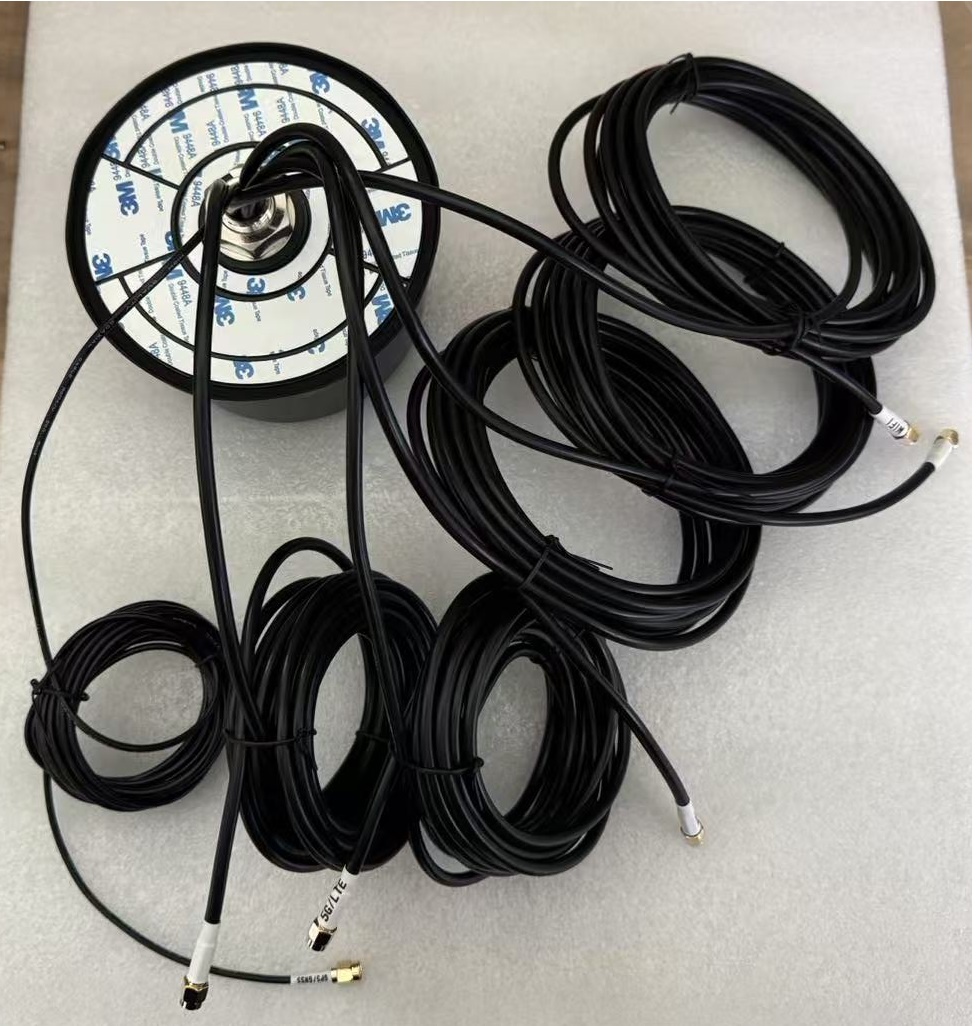

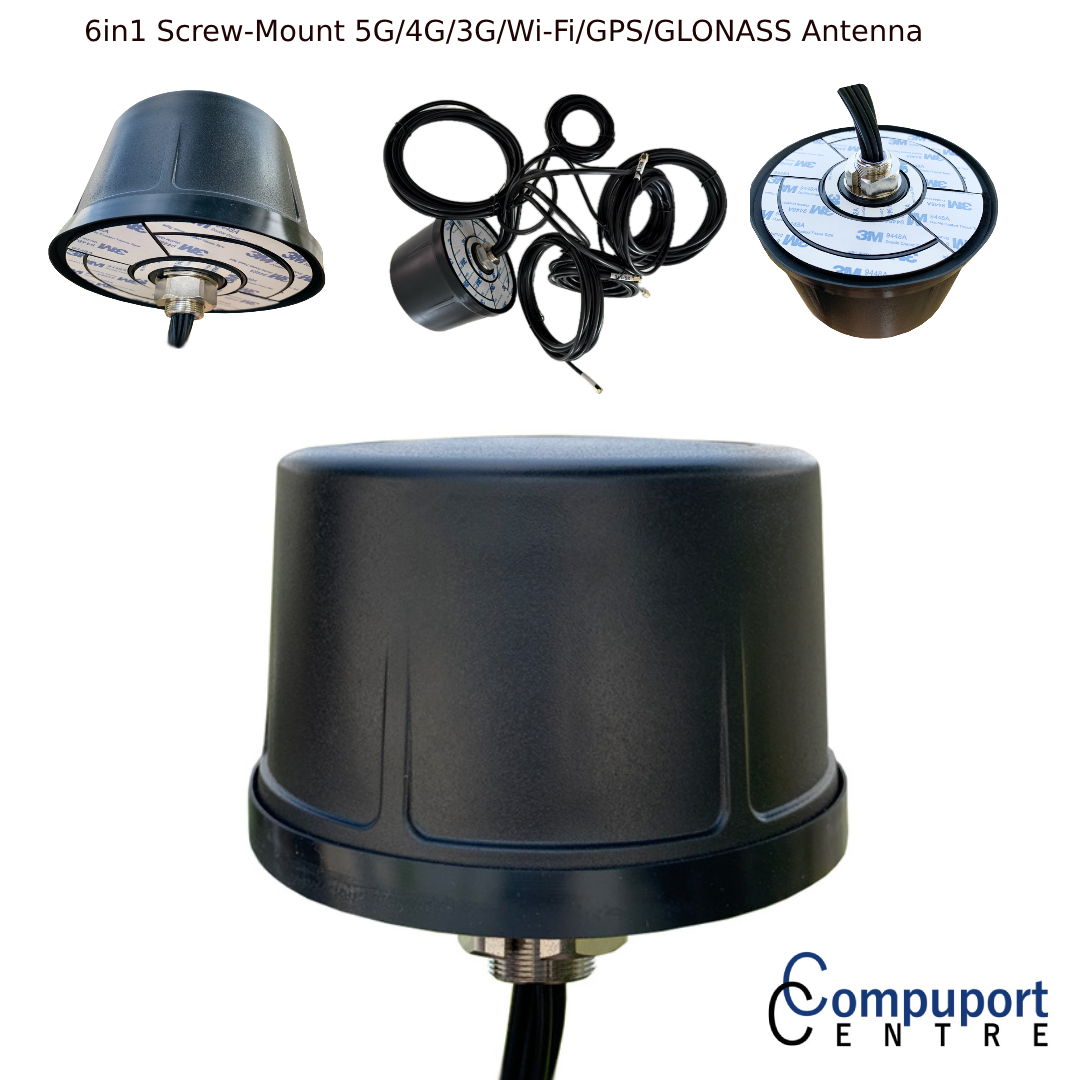

MIMO OMNI 6x6 CQX Antenna:
Part: CPC-GPS(GLONASS)/5GLTE4-CQX-5M
CompuPort 6-Port CQX series (6in1)Screw-Mount 5G/4G/3G/Wi-Fi/GPS/GLONASS
MIMO Antenna.
Features
The CompuPort antenna is a six-port antenna with two LTE elements, designed to cover the 698-960/1710-3800 *2 MHz cellular bands, one GPS element, and 3 Wi-Fi elements, frequency: 2400-2500/4900-6000Mhz*3
The antenna can be mounted on the roof of a vehicle or a fixed structure.
The antenna meets or exceeds various environmental ruggedization specifications for
transportation applications.
This antenna is an omnidirectional, heavy-duty, fully IP67 waterproof external M2M antenna
for use in telematics, transportation, and remote monitoring applications.
The antenna has its ground plane and can radiate in any mounting environment, like metal or
plastic, without affecting performance.
The cables are low-loss, allowing for lengths of up to 10 meters, critical for buses, trains,
and other commercial transport applications. Customized cables and connector versions
available.
Options: 6×1 Meter or 6×5 meters SMA cables

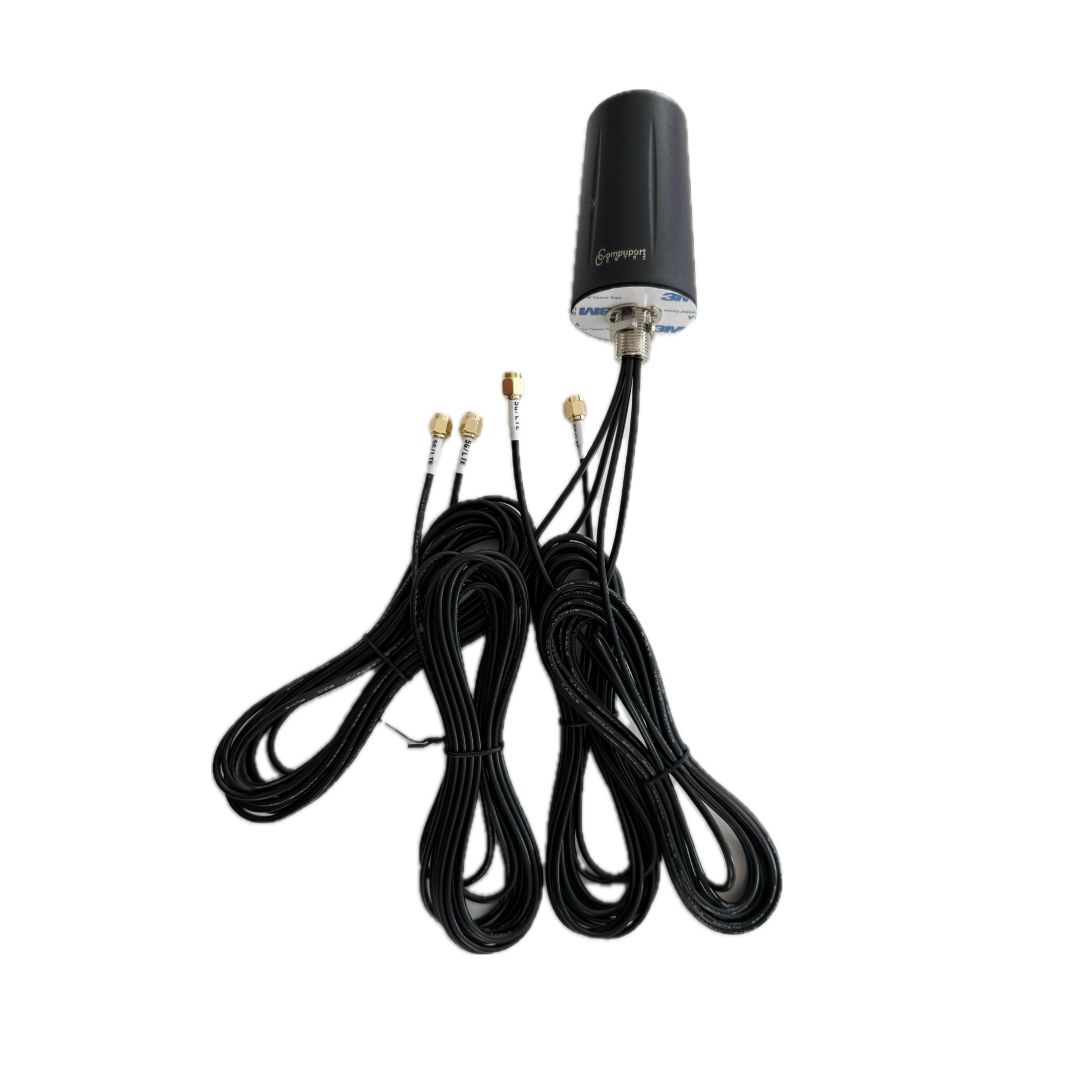

MIMO OMNI 4x4 Terminal Antenna:
Part: CPC-Q7038-DLX4
CompuPort 4G/5G/LTE Low-Profile Multi-Band MIMO Antenna, 4×4 SMA-Male, 700-3800MHz, 13.12ft Cable
About this item
- CompuPort MULTI-BAND SUPPORT: 4G/5G/LTE antenna operates across wide frequency range of 700-3800MHz with 4×4 MIMO technology for enhanced connectivity
- ANTENNA SPECIFICATIONS: Features 4x3dBi gain and compact low-profile dome design measuring 44x82mm for discreet installation
- CABLE LENGTH: Includes four 13.12ft (4-meter) cables with SMA-Male connectors for flexible mounting options
- CONNECTIVITY: 4×4 MIMO configuration enables multiple simultaneous data streams for improved network performance
- INSTALLATION DESIGN: Low-profile dome construction provides durable protection while maintaining optimal signal reception

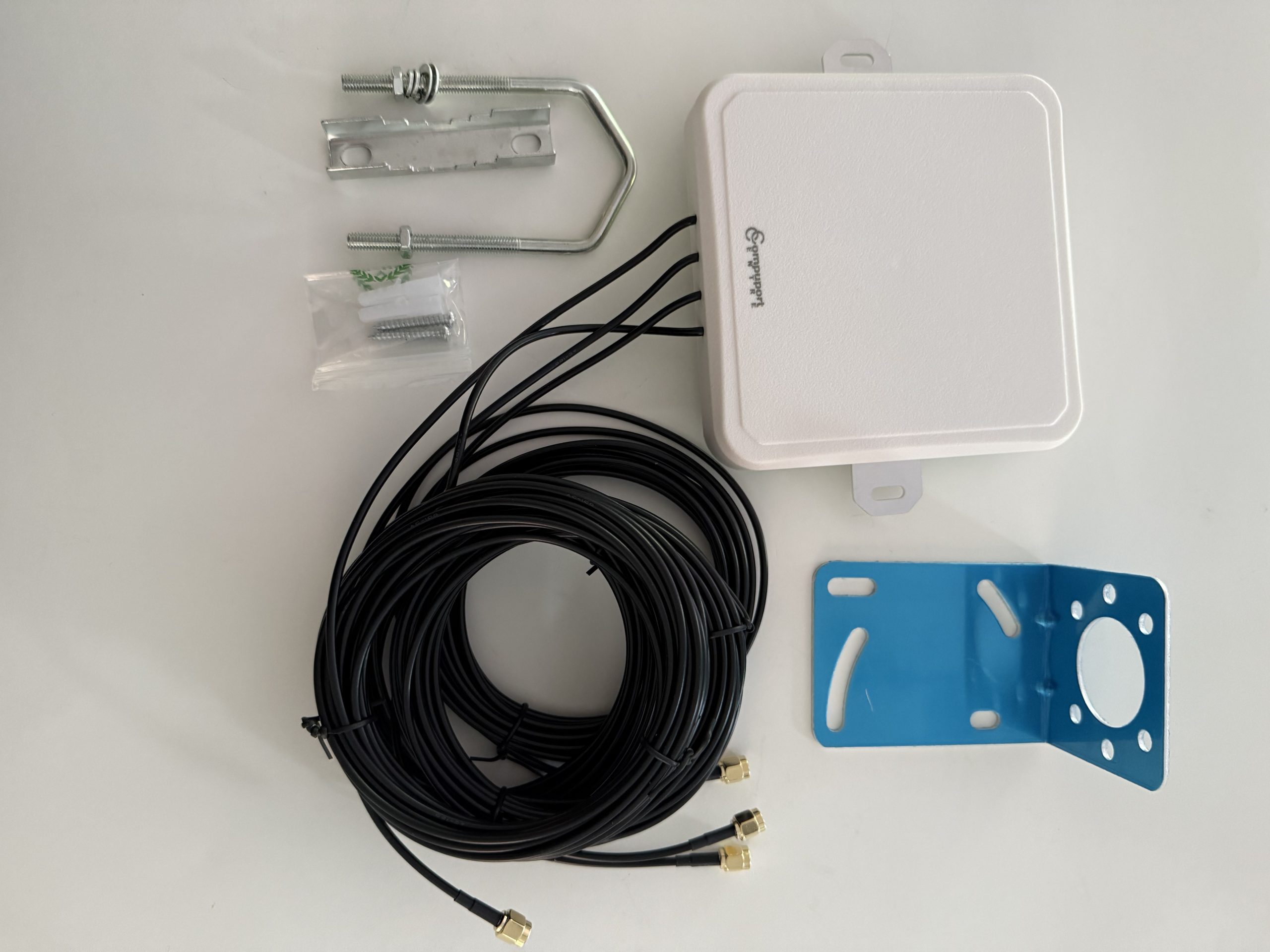

MIMO 4x4 Panel Directional Antenna:
MIMO Directional 4x4 Panel Antenna:
Part: CPC-D7049WP03x4
CompuPort 4×4 MIMO Panel Antenna, External Directional 4G/5G Router Antenna, 698-4900MHz, 4x5M SMA-M Cables
About this item
- WIDE FREQUENCY RANGE: Supports 698-9600/1710-2690/3300-4900MHz frequency band, making it compatible with most 4G and 5G networks for enhanced connectivity
- MIMO TECHNOLOGY: Features 4×4 MIMO panel design for improved signal strength and faster data transmission speeds in weak signal areas
- COMPLETE KIT: Includes four 5-meter SMA-male cables, Poll/Wall Mount for flexible installation and optimal antenna positioning
- DIRECTIONAL DESIGN: CompuPort External directional antenna focuses signal reception in a specific direction for maximum performance
- VERSATILE APPLICATION: Ideal for boosting router signals in remote locations, rural areas, or places with weak cellular coverage
What is 5G?
5G is the fifth generation of wireless cellular technology. It’s in the process of replacing 4G as the predominant network for cellular companies and phone manufacturers. It’s capable of hitting speeds upwards of 1 Gbps (1,000 Mpbs) and uses technology like beamforming and massive MIMO to deliver wireless signals with less interference and more efficiency.
Wide Band YAGI Antennas:
Part: CPCYAG11db
LTE Wide Band Yagi Antenna
CPCYAGI11db: Microhard Bullet-3G Bullet-LTE IPn4Gb IPn4Gii 3G/4G/LTE cellular modem external Wide Band Log Periodic yagi antenna highest gain.
- Highest Gain Wide-Band Log Periodic Yagi Antenna with 30ft cable and mounting bracket
- Antenna adapter for Microhard Bullet-3G Bullet-LTE IPn4Gb IPn4Gii 3G/4G/LTE cellular modem
- Frequency: 698-960/1710-3800 MHz
- Gain: 11dBi 30ft LMR200 Low-Loss Cable
- Antenna Dimension (mm): 445x210x70
YAGI Transit Antenna
Part# : CPC-D7027W10
Dual Band LTE Patch Antenna
The CPC-D7027W10 is a Dual Band LTE Patch antenna for use with LTE cellular modems. This patch style antenna provided a high gain solution for applications that require an outdoor directional antenna.
- Dual Band LTE: 698-960 MHz/1710-3800 MHz
Part# : CPC-Q7027F06X2
2x2 4G/LTE Dual-Polarity MIMO Omni Antenna
Size: Φ63x370mm
- 6dBi high gain 4G MIMO Omni antenna. Outdoor design with waterproof protection, designed for rugged deployments outdoor.
Wide 4G cellular frequency 698~2700MHz.
Antenna Radome Material: PVC
Radiation: Onmi0Directional
Horizontal Beamwidth: 360°
Gain: 4/6dBi
Part# :CPC-Q7027I28
5G LTE 3/5dBi Omni-Direction Antenna
Size: 1.2″L x 1.2″W x 11.5″H
- This antenna is ideal for Vehicles, RV’s, or any quick install on a metal surfaces.
- This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM or 3G to 5G.
- It is designed to cover 698-960/1710-3800MHz Wideband
to cover 3G/4G/5G and WLAN systems for Cellular, PCS, AWS & LTE frequencies.
• The Magnet 5G antenna is an omnidirectional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower.
– Be mounted in an upright position for best results.
-SMA Connector Male.
-Dimension: 1.2″L x 1.2″W x 11.5″H
– Gain: 3/5dBi
Part# :CPC-Q6060F03C
5G LTE 3/5dBi Omni-Direction Antenna
Size: Φ63x230mm
- This antenna is ideal for downtown urban settings, RV’s or marine installations.
– It’s built with a strong fiberglass casing and is designed to cover 600-960/1710-6000MHz Widebandto cover 3G/4G/5G and WLAN systems for Cellular, PCS, AWS & LTE frequencies.
– The Fiberglass antenna is an omnidirectional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower. Parts include:
– Mounting equipment for either a flat horizontal surface or a wall.
– Be mounted in an upright position for best results.
-N Connector Female.
-Dimension: 63x230mm
– Gain: 3/5dBi
Part# :CAC-Q7027F04
5G LTE 3/4dBi Omni-Direction Antenna
Size: Φ20x200mm
- This antenna is ideal for downtown urban settings, RV’s or marine installations.
– It’s built with a strong fiberglass casing and is designed to cover 698-960/1710-2700MHz Widebandto cover 3G/4G/5G and WLAN systems for Cellular, PCS, AWS & LTE frequencies.
– The Fiberglass antenna is an omnidirectional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower. Parts include:
– Mounting equipment for either a flat horizontal surface or a wall.
– Be mounted in an upright position for best results.
-N Connector Female.
-Dimension: 20x200mm
– Gain: 3/4dBi
Part# :CPC-Q6060132
CompuPort 5G LTE 600-6000MHz Omni-Directional UWB Wideband Magnet Mount Antenna with SMA Male and 15′ RG174 Cable.
Electrical: Frequency Range: 600-960/1700-2700/3300-6000Mhz
Part# :CPC-Q6060132
Transit 2x2 Antennas:
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Part# 5G-GPS/GLONASS
CompuPort 5G 4G LTE/GPS/GLONASS 2in1 Combination Puck Style M2M MIMO Antenna for Transportation and Remote Monitoring Applications.
Electrical
GPS/GLONASS
Part:Frequency Range: GPS/GLONASS:1575.42MHz±3MHz/1
Polarization Type: RHCP
Gain: 5dBi
V.S.W.R: ≤1.5
Impedance: 50Ώ
LNA Gain: 28±2dB Typical
Noise Figure: 1.5dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R: <2.0
Voltage: 2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
Current Consumption(mA): 11 Max
5G LTE Part:
698-960/1710-3800MHz
Gain: 2x3dBi
V.S.W.R: ≤2.5
Radiation: Omni-Direction
Polarization: Vertical
Maximum Input Power: 5W
Impedance: 50Ώ
Connector: 2xSMA Male
Cable Type: 2xRG174
Cable Length: 2x3M
Antenna Radome Material: ABS
Mount way: Screw
Mechanical
Dimensions: Φ80x20mm
Weight: 160g
Operating Temperature: -40℃ to+80℃
Humidity: 55%-75%
RoHS Compliant: YES
Part#: CPC-Q7027-DL
Frequency Range: 698-960/1710-2700MHz
Dimensions: Φ48x82mm
Cable Length: 3M (SMA-M)
Radiation: Omni-Direction
Operating Temperature: -40℃ to+70℃
Gain: 3, 5 dBi
Puck Style Cellular Antennas :
Puck Permanent Mount Antennas:
Part# CPC-Q7038X2-03-3’ |
Transportation 3In1 Puck Antenna :
Part: CPC-GPS/LTE/WIFI-03-5m
3-in-1 Puck Antenna (5G/LTE, GPS(GLONASS), WIFI)
CompuPort 3in1 Combination M2M Puck Antenna 5G/WiFi/GPS(GLONASS) with 3×15′ SMA cables for IoT, Utility, Vehicles and remote monitoring
Features
- CompuPort 3in1 GPS/WIFI/LTE antenna is a low profile, heavy-duty, waterproof reach IP67.
- It is used by RF professionals in telematics， transportation, and remote monitoring applications. It combines the highest possible efficiency and peak gain in WIFI/GPS(GLONASS)/3G/4G/5G in a low-profile compact format for mounting via high-quality first tier
- For installation combines 3M adhesive foam, and screw mount together
- CompuPort 3in1 Puck antenna supports all the Cellular network bands with frequency: 5G: 698-960MHz/1710-3800MHz – GLONASS: Frequency Range: 1575.42MHZ±3 MHz/1602-1610MHz
Part# CPC-Q7038X2-03-15’ |
Part# :CPC-GPS(GLONASS)/5GLTE-15′
2 in 1 – LTE Dual Band Transit w/Active GPS(GLONASS) Antenna
The CPC-GPS/5GLTE-15′ is a rugged, permanent mount, 2 in 1 antenna for use with Microhard, Sierra Wireless, DiGi, Peplink LTE/5G/4G/3G modems with built in GPS(GLONASS) capabilities. This antenna offers a simple and effective all in one antenna solution with two 15′ cables SMA Male.
Part# :CPC-GPS(GLONASS)/5GLTE/Wi-Fi-15′
3 in 1 – LTE Tri-Band Transit w/Active GPS(GLONASS) /Wi-Fi Antenna
The CPC-GPS/5GLTE/WiFi-15′ is a rugged, permanent mount, 3 in 1 antenna for use with Microhard, Sierra Wireless, DiGi, Peplink LTE/5G/4G/3G modems with built in GPS(GLONASS)/WiFi capabilities. This antenna offers a simple and effective all in one antenna solution with 2x 15′ cables SMA Male for LTE/GPS, and 1x 15′ SMA Female for WiFi.
Frequency range: 2×698-960/1710-3800Mhz
Part#: MHS035470
Dual LTE (Main/Div) Dual Band Puck Antenna with 2′ SMA Male cables
Part#: MHS035471
Dual LTE (Main/Div) Dual Band Puck Antenna with 12′ SMA male cables
Part#: CPC-Q7038X2-03
Dual LTE (Main/Div) Dual Band Puck Antenna with 3′ SMA male cables
Part#: CPC-Q7038X2-03
Dual 5G/ LTE (Main/Div) Dual Band Puck Antenna with 3′ SMA male cables
Frequency Range: 2×698-960/1710-3800MHz
Part#: CPC-Q7060X2-03
Dual 5G/ LTE (Main/Div) Dual Band Puck Antenna with 3′ SMA male cables
Frequency Range: 2×698-960/1710-6000MHz
Part#: CPC-Q7038X2
CompuPort permanent mount Puck Antenna Omni-Directional with Dual Diversity SMA Male connectors with 15′ Cables for 5G 4G, 3G LTE HSPA Wireless Antenna designed to work with Sierra, Multitech, MicroHard, DiGi, Cisco or any SMA modems.
- This antenna features dual LTE 3G 4G 5G connections and a low profile puck style design 4 dB Gain. Frequency Range: 700 – 960 MHz & 1700 – 3800 MHz works with any wireless carrier Bell, Rogers, Telus, Verizon, AT&T, etc..
Puck Magnet Antennas:
Part#: CPC-5GLTEX2-13′
CompuPort Magnet mount Puck Antenna Omni-Directional with Dual Diversity SMA Male connectors with 13.1′ Cables for 5G 4G, 3G LTE HSPA Wireless Antenna designed to work with Sierra, Multitech, MicroHard, DiGi, Cisco or any SMA modems.
- This antenna features dual LTE 3G 4G 5G connections and a low profile puck style design 2x3dB Gain. Frequency Range: 2×698-3800MHz
MHz works with any wireless carrier Bell, Rogers, Telus, Verizon, AT&T, and others
Puck Magnet Antennas:
Part#: CPC-5GLTEX2-3′
CompuPort Magnet mount Puck Antenna Omni-Directional with Dual Diversity SMA Male connectors with 3′ Cables for 5G 4G, 3G LTE HSPA Wireless Antenna designed to work with Sierra, Multitech, MicroHard, DiGi, Cisco or any SMA modems.
- This antenna features dual LTE 3G 4G 5G connections and a low profile puck style design 2x3dB Gain. Frequency Range: 2×698-3800MHz
MHz works with any wireless carrier Bell, Rogers, Telus, Verizon, AT&T, and others
Terminal Cellular Antennas :
Low-Profile Antennas:
Part#:CPC-Q7038-72W
- CompuPort Q7038-72W At only 72mm high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.It is a waterproof, external 2G/3G/4G/5G cellular lte antenna operating at Band 71, staring at 698-960 MHz, CBRS at 3500-3700 MHz
- It can be used in mobile and fixed applications for 4G/5G LTE wireless such as: Public safety,Utilities ,smart cities,Fleet management,Precision agricultural,Industrial applications This antenna has superior performance over wide bands compared to traditional whip antennas.
- Stable radiation patterns over low angles provide consistent gain in the horizontal plane, meaning that it is especially suitable for cellular applications.
- It is primarily designed for use with 5G LTE modules and devices ,Its high efficiency across the ultra wide band and is backward compatible with 2G, 3G & 4G cellular applications such as GSM, LTE, UMTS,WI-FI and even has GPS included for assisted GPS applications.
Part#:CPC-QGC-53W
CompuPort GSM Terminal LTE Antenna with SMA Right Angle Connector, Very Low Profile Compatible with Sierra Airlink Wireless, Teltonika, Digi, Microhard, and Any SMA Modems.
- It is primarily designed for use with 5G LTE modules and devices ,Its high efficiency across the ultra wide band and is backward compatible with 2G, 3G & 4G cellular applications such as GSM, LTE, UMTS,WI-FI and even has GPS included for assisted GPS applications.
Gain: 2.15dBi
Connector: SMA Male Right Angle
Dimension: Φ8x50mm
Part#: CPC-Q7027-40W
CompuPort 4G Mini Terminal Antenna with SMA Connector- Frequency: 698-960/1710-2700Mhz…
– Smallest Mini LTE terminal antenna in the market
– CompuPort Mini LTE Terminal Antenna is Compatible with Sierra Airlink Wireless, DiGi, Microhard, Cradlepoint, Teltonika and any SMA Wireless Modems/Gateways
Part#: CPC-Q7035-YZW
5dbi Omni 5G Whip Antenna
Frequency: 698-960/1710-3500MHz
Connector: SMA Male
Dimension: 13x172mm
Part#: CPC-Q7038-BY
- Frequencies: 698/9600 1710/2700 3300/3800 GPS:1575.42Mhz
- CompuPort 5G Antenna Works with any 5G device with a SMA(m) connector.
- It is primarily designed for use with 5G LTE modules and devices ,Its high efficiency across the ultra wide band and is backward compatible with 2G, 3G & 4G cellular applications such as GSM, LTE, UMTS,WI-FI and even has GPS included for assisted GPS applications.
Part#: CPC-Q6060-BY19
- Frequencies: 698-960/1400-2700&3300-6000MHz,
- CompuPort 5G Antenna Works with any 5G device with a SMA(m) connector.
- It is primarily designed for use with 5G LTE modules and devices ,Its high efficiency across the ultra wide band and is backward compatible with 2G, 3G & 4G cellular applications such as GSM, LTE, UMTS,WI-FI and even has GPS included for assisted GPS applications.
Serial RS232/RS485/RS422 to Ethernet
-Support DHCP/DNS -Support built-in webpage -Upgrade firmware via network -Supports RS232/RS485/RS422 port ( -Can’t be used at one time) -Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client Baud rate of serial port can be configured from 600 bps to 230.4 Kbpst
UPSBrick
The UPSBrick provides a high capacity UPS battery solution or temporary power source for Microhard cellular devices. The 15,000 mAh capacity will keep a modem connection alive for up to 24 hours! The UPSBrick can be installed into cabinets, industrial panels or vehicles so your application or service is never in the dark! The configurable remote power loss alarm lets you know when you are on battery power.
Schneider PLC:
Modicon Premium:
Modicon M221 Nano PLC
TM3TI4G - Modicon TM3 - 4 analog / temperature inputs (spring) 24Vdc
Cellular Accessories:
LTE Cube Mounting Bracket (MHK050060)
The LTE Cube Mounting Bracket allows the LTE Cube to be wall, cabinet, or DIN Rail mounted. The mounting bracket can be permanently installed in a desired location, the LTE Cube then can be clipped in and out for easy access as needed.
Bullet Mounting Bracket
(CPCMHS050030)
The CPCMHS050030 Mounting Bracket with inlcuded Din Rail mount allows the Bullet Series models to be wall, cabinet, or DIN Rail mounted. The mounting bracket can be permanently installed in a desired location, the Bullet then can be clipped in and out for easy access as needed.
Pico Enclosed Mounting Bracket (MHS106020)
Part#: CPC-CAB-SMAF-U.FL
SMA series cable to U.FL Coax Cable
Size: 100mm
onnector 1: Standard SMA Female Straight
Connector 2: Standard U.FL
Part#: CPC-CAB-SMA_M-N_M
SMA Male cable to N-Male RG58U Cable
Size: 4.5M(15′)
or 1M(3′)
Connector 1: Standard SMA Male Straight
Connector 2: N Male.
Part#: CPC-CAB-SMA_MF-75′
Part#: CPC-CAB-SMA_MF-50′
SMA Male to SMA-Female LMR-240 Extension Cable
Size: 75′ or 50′
Connector 1: Standard SMA Male Straight
Connector 2: Standard Female.
Part#: CPC-CAB-SMA_MF-32′
SMA Male to SMA-Female LMR-240 Extension Cable
Size: 32′
Connector 1: Standard SMA Male Straight
Connector 2: Standard Female
Power Supply
(CPCMHS025096)
The CPCMHS025096 Power Supply enables you to get up and running quickly by simply plugging the power supply into an AC outlet, and with the molded 4 pin connector, directly into the VIP4Gb, IPn4Gii, BulletPlus, or Bullet models.
Power Supply
(CPC-KH20372-0004)
The CPC-KH20372-0004 Power Supply enables you to get up and running quickly by simply plugging the power supply into an AC outlet, and with the molded 4 pin connector, directly into the Microhard, Peplink, Airlink, Cradlepoint, and Perle Systems wireless modems.
4-Pin Power Cable (MHS041420)
The CPCMHS025097 Power Cable allows you to power your cellular device on the go. Equipped with a 12V Car Adapter this cable allows you to get up and running quickly by simply plugging the power supply into an automotive 12V outlet, and with the molded 4 pin connector, directly into your microhard cellular modem.
Cellular Antenna Accessory Kit (MHS033650)
The MHS033650 4G Antenna Accessory Kit gives you everything you need to get your Microhard cellular modem up and running. This kit is compatible with the IPn4Gb, IPn4Gii and Bullet-LTE models.
Part# CPC-KH20372-0006
CompuPort DC 12V CLA with 4-Pin Molex Connector for Microhard, Sierra Wireless, Cradlepoint, Peplink Wireless Cellular Gateway/Modems
Part# KH20372-5G
CompuPort 5G Cellular Antenna Accessory Kit – Sierra Wireless AC Power Adapter and Two 5G Whip Antennas.
Part# CPC-DA-SMA-TS9
SMA-F to TS9 Adapter
Part# CPC-CABSMAMSMAF15
15 ft Low-Loss Coaxial Extension Cable (50 Ohm) SMA Male to SMA Female Connector, Pure Copper Coax Cables – Antenna Lead Extender for 3G/4G/5G/LTE/ADS-B/Ham/GPS/WiFi/RF Radio Use.
Quick Details:
- Model Number: CPCACBK-01
water proof: IP65/IP66/IP67
shell material: aluminum alloy
Salt spray test: 12/24/36 hours
Tensile testing: 10N
Vibration test: 150gn
Cable material: copper
Connector material: copper
mounting way: pole
Certification: CE/ROHS/ROHS/ISO9001/CIQ
Part# CPC-ACBK-02
Wall/Pole Mount Antenna Bracket
Part# CPC-ADA-NM-SMAM
SMA Male to N Male adaptor
Part# CPC-SMA-M2F
SMA Male to Female Coupler
Part# CPC-BLQ-D
N-Male to N-Female Lightning Arrestor Surge Protector for Antenna 50 Ohm 0-6GHz
Part# CPC-BLQ-G
SMA Coaxial Lightning Aresstor Surge Protector for Antenna 50 Ohm 0-3GHz
Cellular Signal Boosters:
SKU: BTU15MS81H
Stealth M2M Direct Connect Booster Kit With SMA Connector and 14″ Magnetic Antenna
Mobile M2M Complete Kit
This kit is a plug and play. It improves cellular signal in poor signal and remote locations, reduces dropped calls and increases data speed. Comes with a 2″ stainless steel magnetic mount antenna, best suited for varying terrain with obstructions.
SKU: BBCZ160GBO
Stealth Z1 60dB 2-Band 3G 4G LTE Cellular Booster Kit
High Power Building Cell Booster Kit With Omni Directional Antennas
- 60 dB gain
- Complete kit includes all parts required – with F connectors
- Covers up to 2500 sq. ft.(Sq ft will vary with outside signal strength)
- Recommended for locations LESS than 6 miles (10 km) from the nearest cellular tower
SKU: BBCX660NH
Stealth X6 60dB 6-Band 3G 4G LTE Extreme Power Building Booster Kit–N Connectors Without Antennas
STEALTH X6 4G LTE Customizable Booster
- 60 dB gain
- Build a kit by choosing antennas and cables with N connectors
Covers up to 4000 sq. ft.
SKU: BTUX615M1481H
Stealth M2M X6 15dB 4G/5G Ready LTE 6-Band Direct Connect Boosters
Stealth M2M X6 Direct Connect Booster Kit With SMA Connector and 14″ Magnetic Antenna
- Stealth M2M X6 Direct Connect Booster
- Booster Input Cable 3ft/100cm MCT Female to Fme Female
- SMA Male to FME Male Barrel Co-ax Connector
- 14″ MCT Small Mag
** Please send your inquiries for latest pricing to: info@compuport.ca Phone: 647-870-7678
Why Buy From CompuPort Centre Inc.?
1. Premium Quality and Reliability
At CompuPort Centre Inc., we prioritize quality in every product we offer. Our 5G antennas are manufactured with the highest standards to ensure they provide superior performance and longevity.
2. Industry-Leading Customer Support
We are committed to providing excellent customer service. Our team is available to assist you before, during, and after your purchase to ensure you're completely satisfied with your product.
3. Competitive Pricing
We offer the best value for your money. Our 5G antennas provide cutting-edge technology at competitive prices, without compromising on performance or durability.
4. Custom Solutions for Your Needs
Whether you're a business or residential customer, we provide tailored solutions to meet your specific requirements. Our experts will help you select the right antenna for your needs.
5. Trusted by Professionals and Consumers Alike
We have built a solid reputation among our clients for providing high-performance products and excellent service. Our 5G antennas are trusted by professionals, businesses, and consumers who rely on reliable, fast, and stable connections.
6. Fast and Secure Shipping
We ensure that your products are shipped quickly and securely. With CompuPort Centre Inc., you can expect timely delivery and peace of mind, knowing your products are handled with care.
7. Ongoing Warranty and Support
